Description

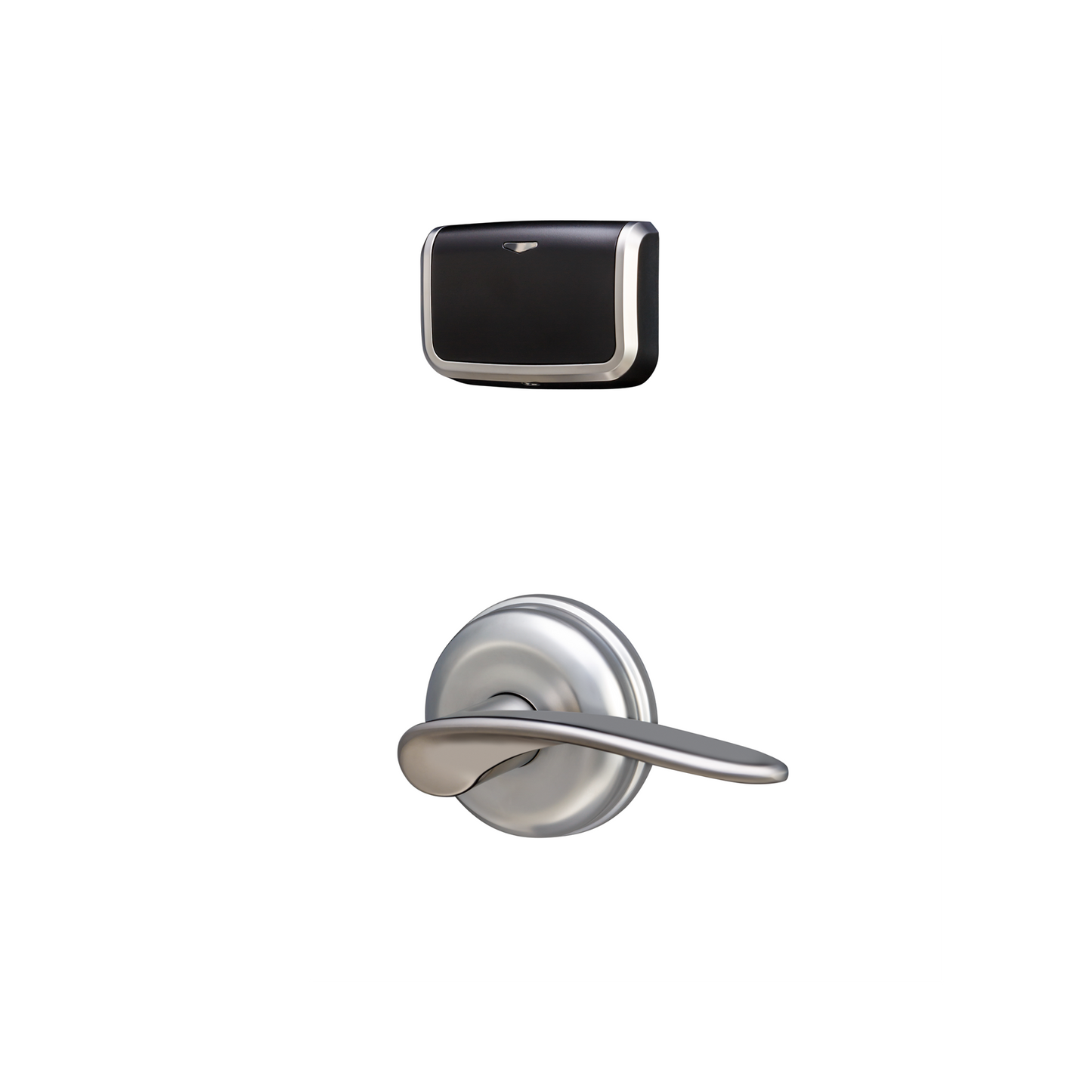

Designed for today’s modern aesthetics, Onity’s Advanced Trillium lock is available in a slim two-piece module design with a low profile reader, RFID and optional Bluetooth® Low Energy (BLE) configurations. Advanced Trillium locks can be operated using Onity’s DirectKey™/ mobile key for hotel technology enabling guests to use an approved smartphone app to securely download their assigned key for easy access to controlled areas.
Features
• Simple to use
• Ideal for retrofit and new installation applications
• Compatible with Onity OnPortal™ system software
• Lock LEDs indicate lock status, including low battery level
• Powered by four AA batteries with a two year normal life
• Mobile access compatible
• Provides a wide range of design options for finish and levers
• DirectKey-ready: Optional on-board DirectKey module provides secure wireless communication of credentials from a user’s smartphone to a locking device via Bluetooth Smart communications
• Supports MIFARE Classic®, MIFARE Plus®, MIFARE Ultralight®, and MIFARE Ultralight C cards
• Reading technology: contactless RFID (ISO14443A, NFC)
• Multiple opening devices available: cards, wristbands, keychains, etc.
• Non-volatile memory: records last 500 openings including date, time and card used
• Programmable to customer needs (meeting rooms, offices, housekeeping, etc.)
• Corrosion-treated for normal atmospheric conditions
• NXP CRYPTO1 or AES-128 card encryption
Advanced Credential Security
Trillium RFID locks include the option to use MIFARE Plus technology, an enhanced credential security for RFID cards.
Easy Upgrade Path
Trillium locks provide an easy upgrade path where Onity HT series locks are currently installed – no new door cuts or repainting are required when installing new locks. Properties with Onity HT locks can update to Trillium locks by installing a new escutcheon, control board, and reader.
